Set up ScreenPal with Canvas LMS using LTI version 1.1

Set up ScreenPal with Canvas LMS using LTI version 1.1

ScreenPal integrates with many learning management systems via the Learning Tools Interoperability (LTI) standard.  This article will help you with the setup and use of our LTI version 1.1 app within the Schoology LMS.  For more information about how to set up LTI version 1.3, see Set up ScreenPal with Canvas LMS using the LTI v1.3 app.

Please note that while we continue to support the use of LTI v1.1 with ScreenPal, we will no longer be developing ScreenPal feature updates for this version.

Use of our LTI app is compatible with all plans; Free, Deluxe, Premier, Max, and Team Plans.

Enable Team Plans with the Consumer Key and Shared Secret

You can use the LTI app to enable Canvas to access the ScreenPal Screenshot tool, Screen Recorder and Video Editor, as well as other tools provided by your plan (embedding a video channel, adding a screen recorder button for student assignments, etc.)  If you are a member of a Team Plan, in order for a team members to access the features of a Team Plan, the Team Admin for your ScreenPal account will need to configure the LTI App.  If you are using version 1.1 of the LTI app plugin, you will need a Key and Secret for this configuration.  Obtain these items by completing the following steps:

1. First, log into ScreenPal with your Team Owner or Team Admin credentials.

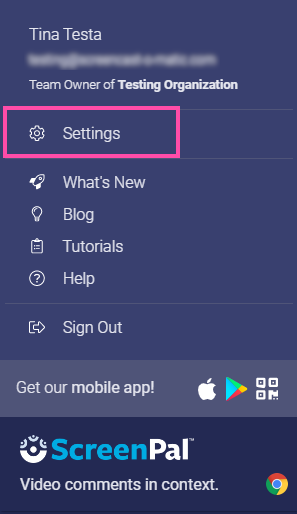

2. Click your user badge in the top right and select Settings from the menu.

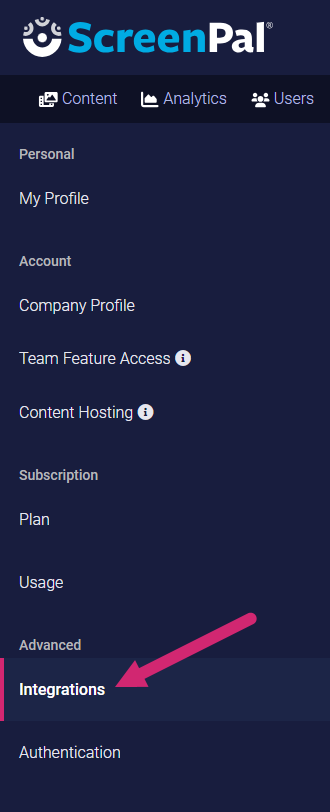

3. Click Integrations from the menu on the left.



4. Click the Add Integration button at the top of the page. When you click this button, additional fields are displayed.



4. For Integration Name, enter a unique name for this integration. For example, enter ScreenPal LTI v1.1.
You can have multiple integrations of the same type, so the name for each one must be distinctive.

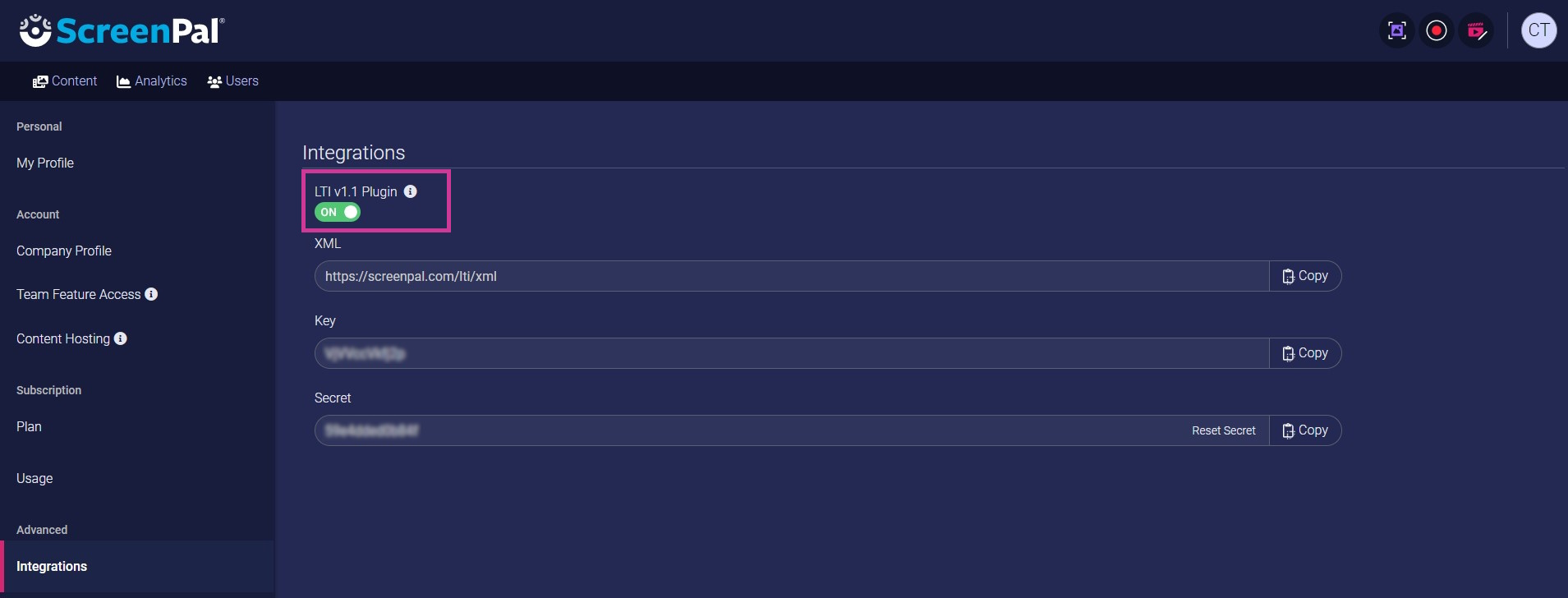

5. For Integration Type, select LTI v1.1 Plugin from the list.
The XMLKey, and Secret fields are displayed.
Note: These values are unique to your Team account and should not be shared with anyone outside of your team.

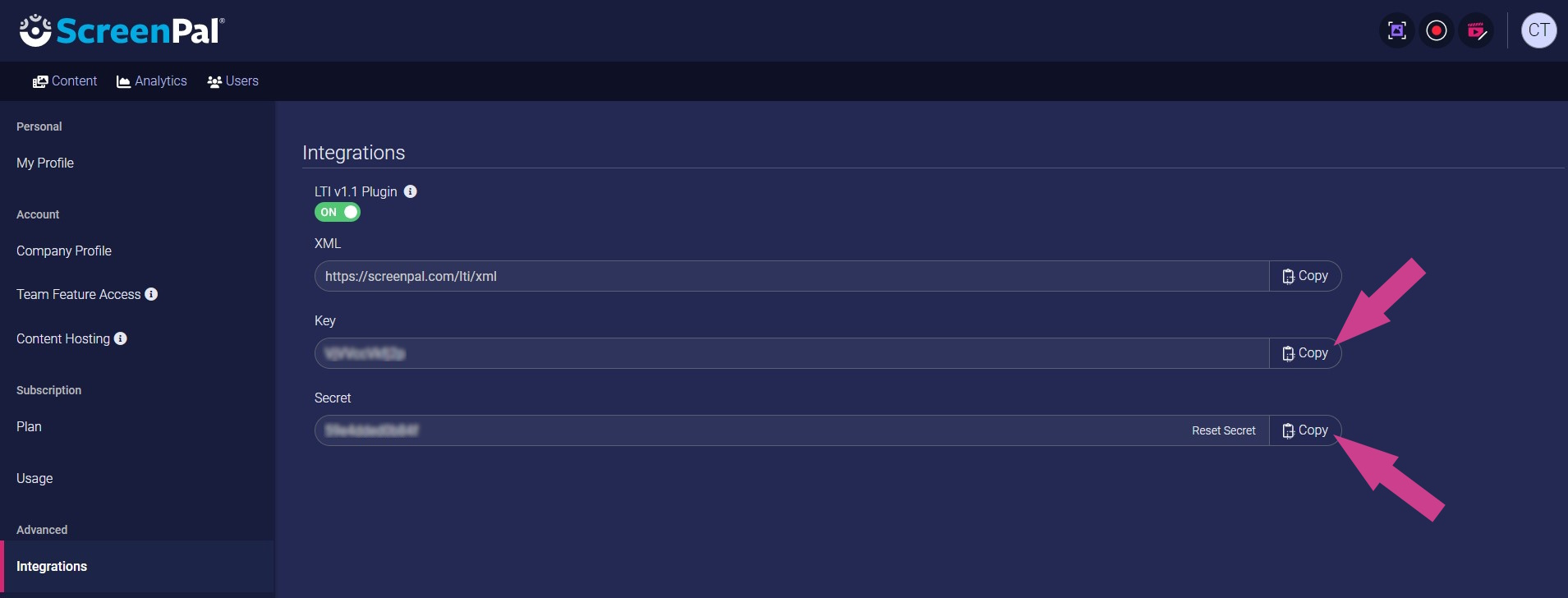

6. Click the Copy button next to Key and Secret to copy the values to paste into your LTI app.

7. Click Save.

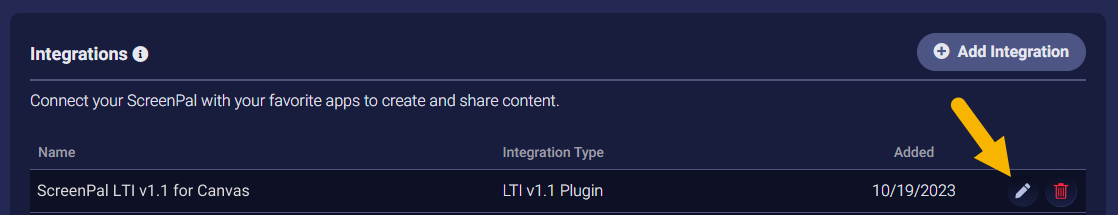

You can edit the integration at any time by clicking the Edit icon.



Add the LTI app as a Canvas Admin

1. Login to your Canvas instance as an admin.

2. Click Admin, then Settings.  Finally, click the Apps tab to configure the ScreenPal app as an external app.


3. Next, click on View App Configurations.

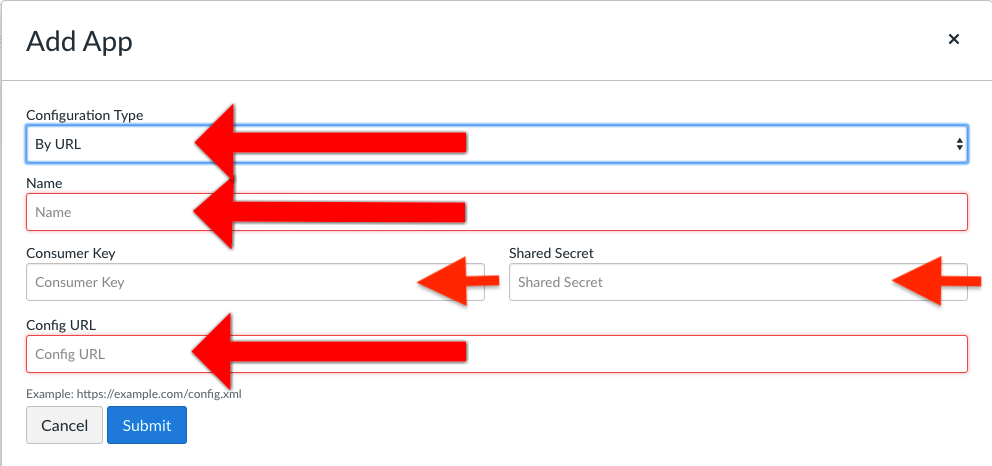

4. Click on +App to add the ScreenPal LTI app and configuration screen will appear.


Enter the following:

  • Change Configuration Type to By URL
  • For Name, please enter ScreenPal
  • Put the following URL into Config URL
https://screenpal.com/lti/xml
  • For Consumer Key, add the Key that you copied from the Integrations page within the ScreenPal settings.
  • For Shared Secret, add the Secret from the ScreenPal settings.


5. After all fields are filled out, click Submit.  Now you can enjoy the upgraded Team Plan features using your LTI app!


Teachers can add ScreenPal to their Courses

If you are a teacher, you can add and use the ScreenPal LTI app to your Canvas instance courses without an admin.  Read the instructions below or watch a video about how teachers can add the ScreenPal LTI app.

1. First, choose a course and go to Settings. Select the Apps tab (as seen below).


2. If the ScreenPal app is already shown in the list, no further action is needed.  If it is not, click View App Configurations and then +App.


3. Enter the following in the configuration screen that is displayed:

  1. Change Configuration Type to By URL
  2. For Name, please put ScreenPal
  3. Enter the following URL for Config URL:
https://screenpal.com/lti/xml


4. Click Submit

Note: You can ignore the Consumer Key and Shared Secret fields.

As a teacher, you've now added the ScreenPal LTI app to your course.  You can click on the icon shown below in the rich text editor to add screen recordings, channels, or a ScreenPal screen recorder that your students can submit their own recordings with.  Enjoy making use of the ScreenPal LTI app within assignments in courses or any other place in the Canvas LMS where a rich text editor is present.



FAQ

When launching the ScreenPal team application, why am I unable to use the Video Editor?

Check your Canvas app settings (or ask your Canvas Administrator to check and configure) to make sure you have the consumer key and secret added correctly.
